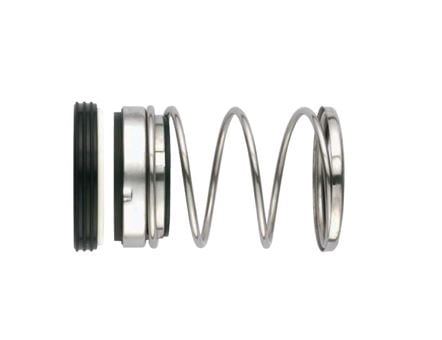

Kolþétti 522

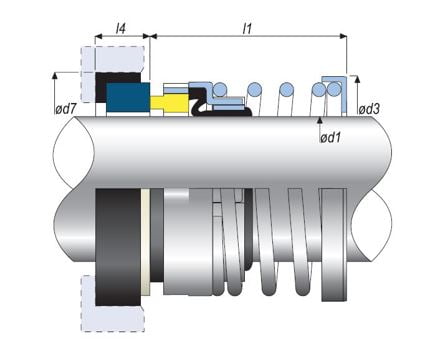

d1 mm	d3 mm	d7 mm	l1 mm	l4 mm	Þétting	Vörunúmer
10	19	18.1	15	5.5	Nitril	DÞ-SR2/0100
11	20	20.6	18	5.5
12	21	20.6	18	5.5	Viton	DÞ-SR2/0120
13	23	23.1	22	6
14	23	23.1	22	6	Viton	DÞ-SR2/0140
15	24	26.9	22	7
16	26	26.9	23	7	Viton	DÞ-SR2/0160
18	29	30.9	24	8
19	31	30.9	25	8	Viton	DÞ-SR2/0190
20	31	30.9	25	8	Viton	DÞ-SR2/0200
21	33	35.4	25	8
22	33	35.4	25	8	Viton	DÞ-SR2/0220
23	35	35.4	27	8
24	35	35.4	27	8	Viton	DÞ-SR2/0240
25	36	38.2	27	8.5	Viton	DÞ-SR2/0250
26	36	38.2	27	8.5
28	40	43.3	29	9	Viton	DÞ-SR2/0280
30	43	43.3	30	9	Viton	DÞ-SR2/0300
30	43	43.3	30	9	EPDM	DÞ-SR2/0300sic/sic
32	46	43.3	30	9	Viton	DÞ-SR2/0320
33	46	53.5	39	11.5
34	49	53.5	39	11.5
35	49	53.5	39	11.5	Viton	DÞ-SR2/0350
36	49	53.5	39	11.5
38	53	60.5	39	11.5
38,0(B)	53	53.5	39	10
40	56	60.5	39	11.5
42	59	60.5	39	11.5	Nitril	DÞ-SR2/0420
43	59	60.5	39	11.5
44	61	65.5	41	11.5
45	61	65.5	41	11.5
48	64	65.5	41	11.5
50	66	72.5	45	11.5
55	71	72.5	47	11.5
60	78	79.3	49	11.5
65	84	84.5	51	11.5
70	89.7	89.5	51	11.5
75	98	94.5	57	11.5
80	100	99.5	59	11.5
85	107.5	105.5	59	13.5
90	111	111.5	62	13.5
95	119	116.5	62	13.5
100	124	119.5	75	13.5
